014 / PROJECT

Noble
Revent

Bangkok, Thailand
Residential Interior
Custom Furniture + Detail

Save
Project

Noble Revent is a compact residential interior developed around the personality and daily routines of its owner. Rather than making a small apartment feel neutral or generic, the project uses a precise palette of black steel, galvanized surfaces, timber, glass, exposed services and collected objects to create a highly individual home.

Custom elements are used to make limited space work harder. Storage becomes display, industrial materials become finished surfaces, and furniture is designed as part of the architecture. The project demonstrates how a relatively small residence can feel distinctive through careful detailing rather than size.

LocationBangkok, Thailand
ProgramResidential Interior
ScopeInterior Design / Custom Furniture
DesignerSpaceLAB Architects
01 / COMPACT LIVING

Small space, strong identity.

The interior is organized as a continuous living environment rather than a collection of decorated rooms. Open shelving, exposed structure and carefully placed furniture keep the apartment visually connected while giving each zone a distinct use.

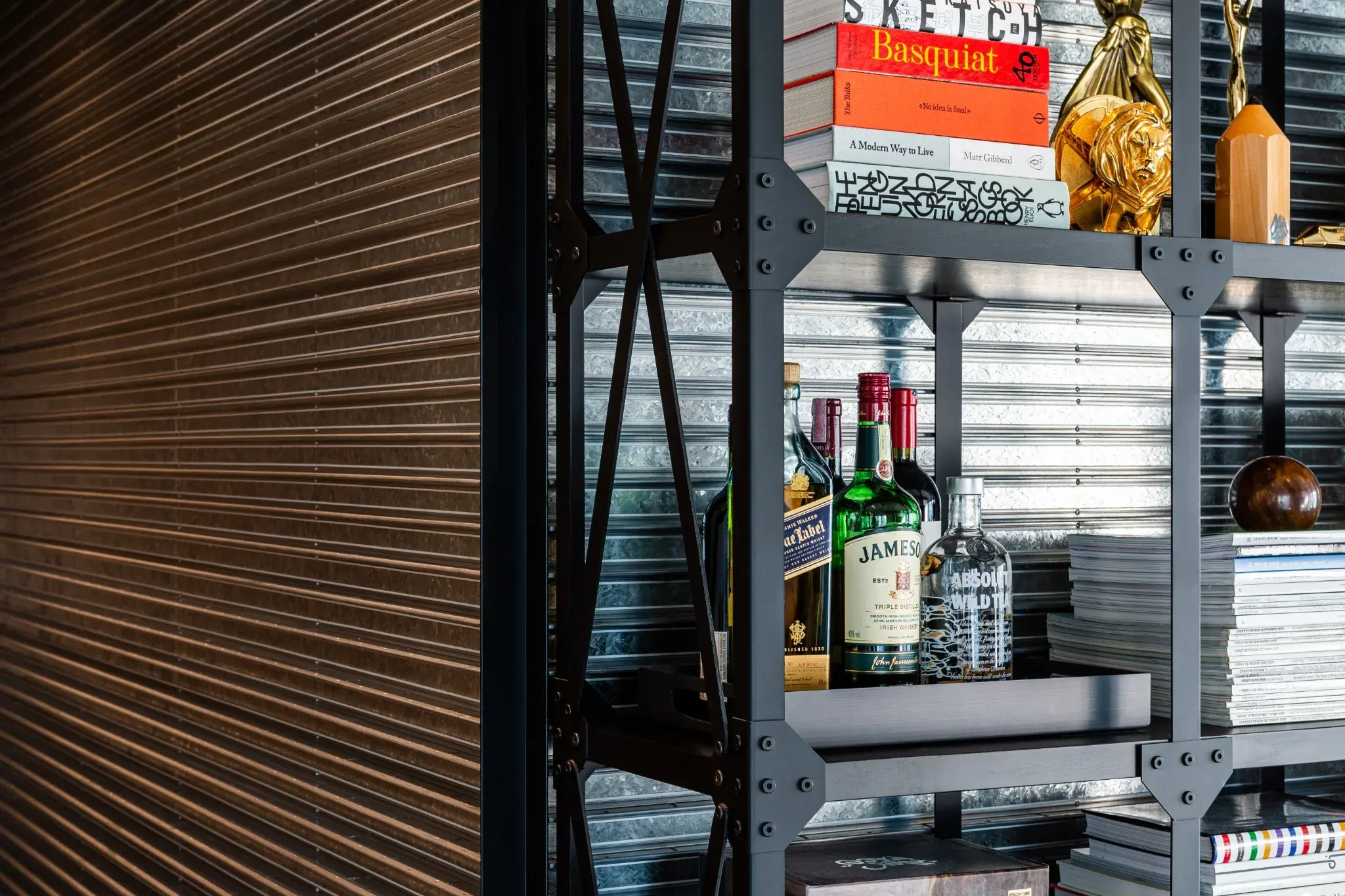

Noble Revent custom steel shelving and material palette
Steel Shelf / Collection01

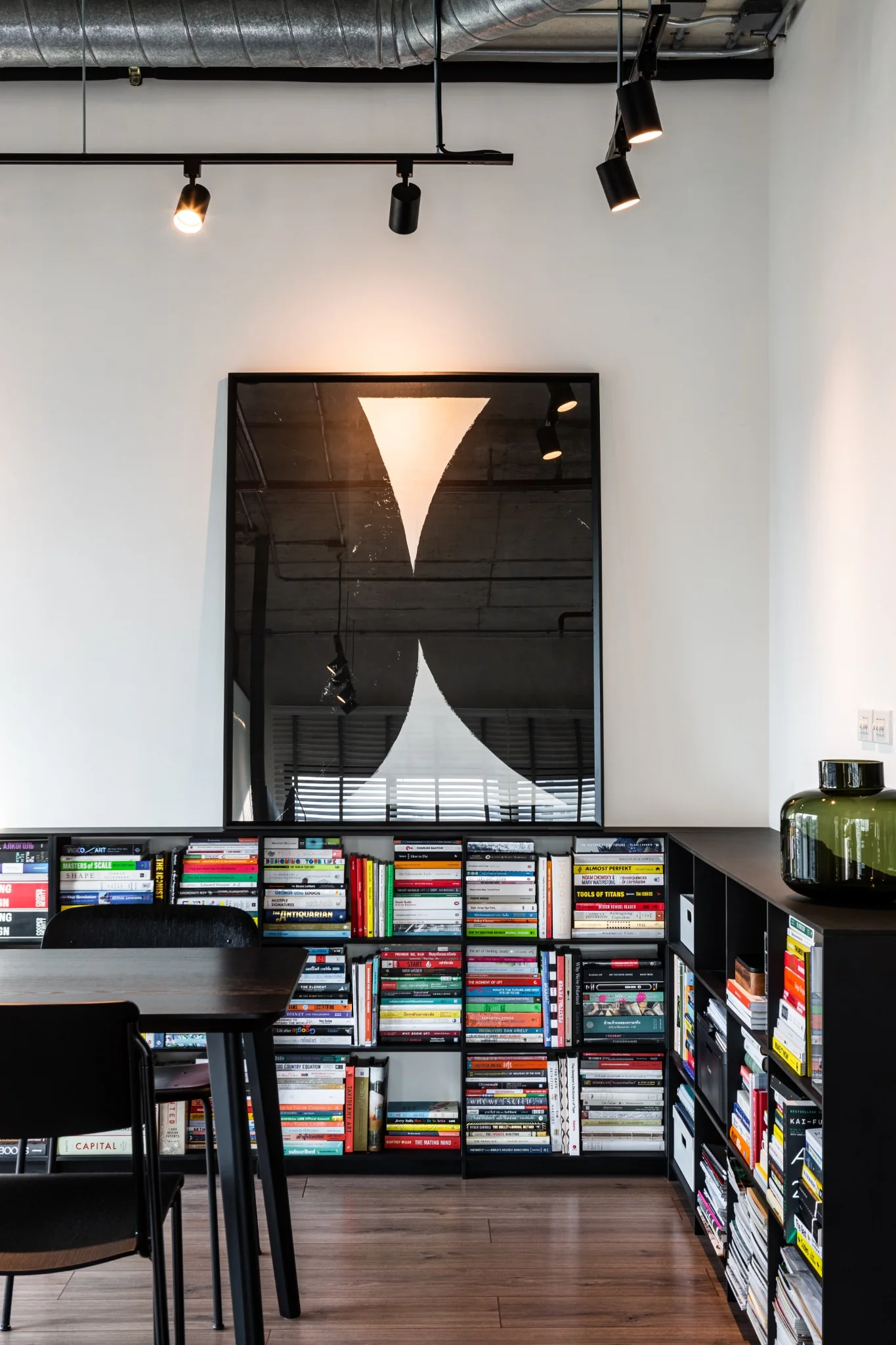

Noble Revent dining and library area
Dining + Library02

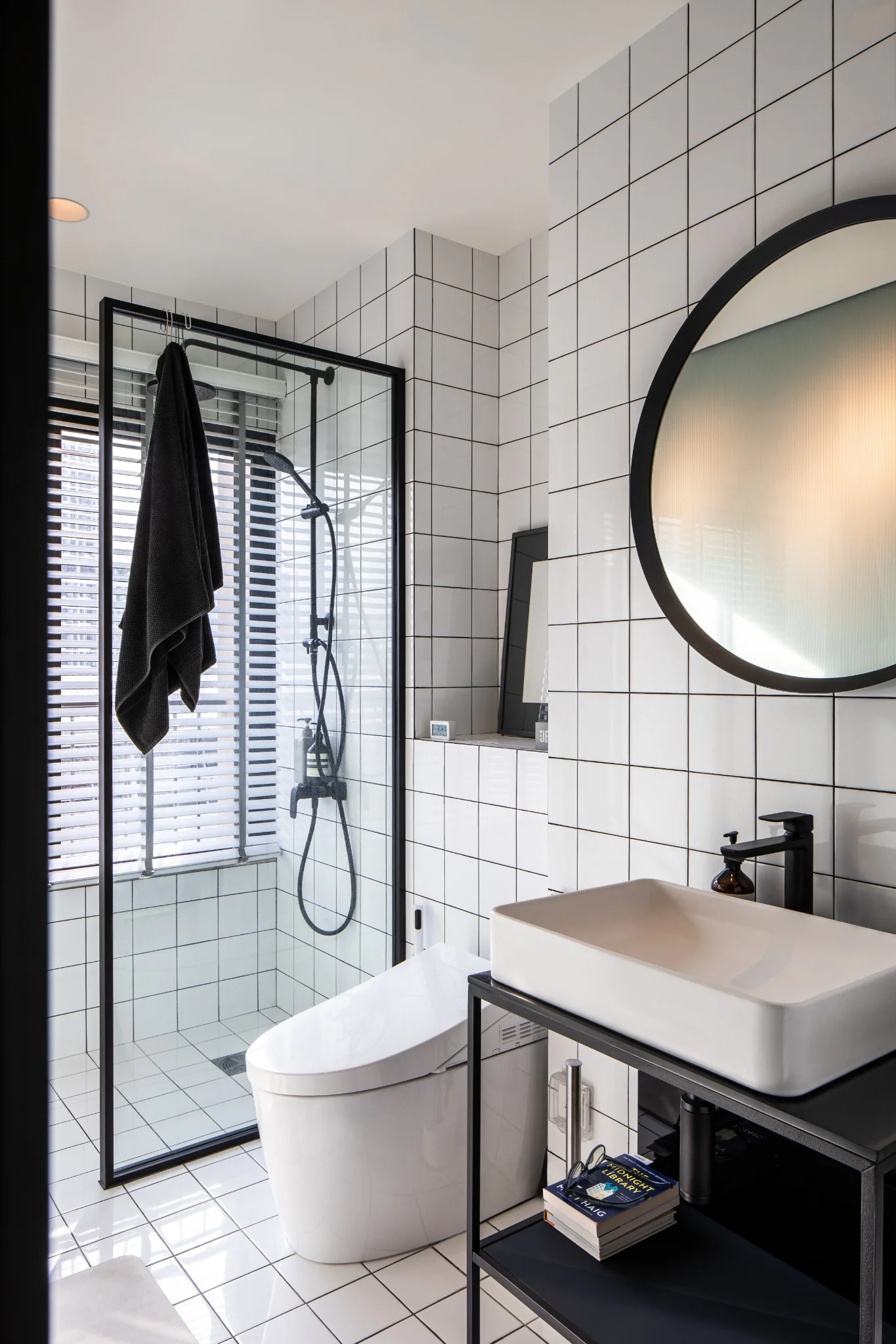

Noble Revent bathroom with black frame and white tile
Bathroom / Grid03

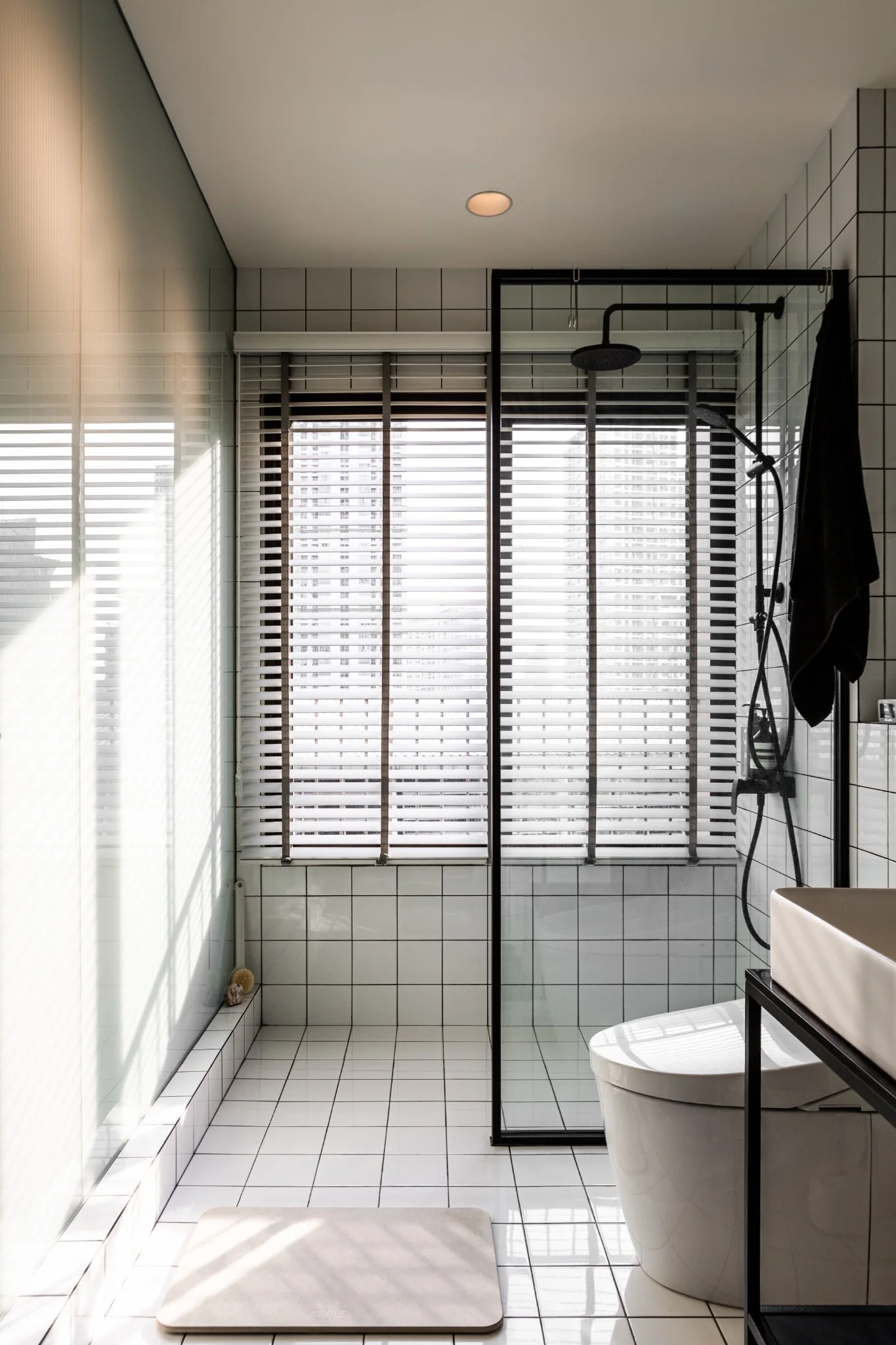

Noble Revent compact bathroom with daylight
Bathroom / Daylight04
02 / CUSTOM TV MECHANISM

A piece of furniture designed as a machine.

The TV stand was designed specifically for the apartment so the screen can rotate between different viewing positions. SpaceLAB developed the pivot, pole, bracket and support through hand sketches, then worked through fabrication with a local metal workshop.

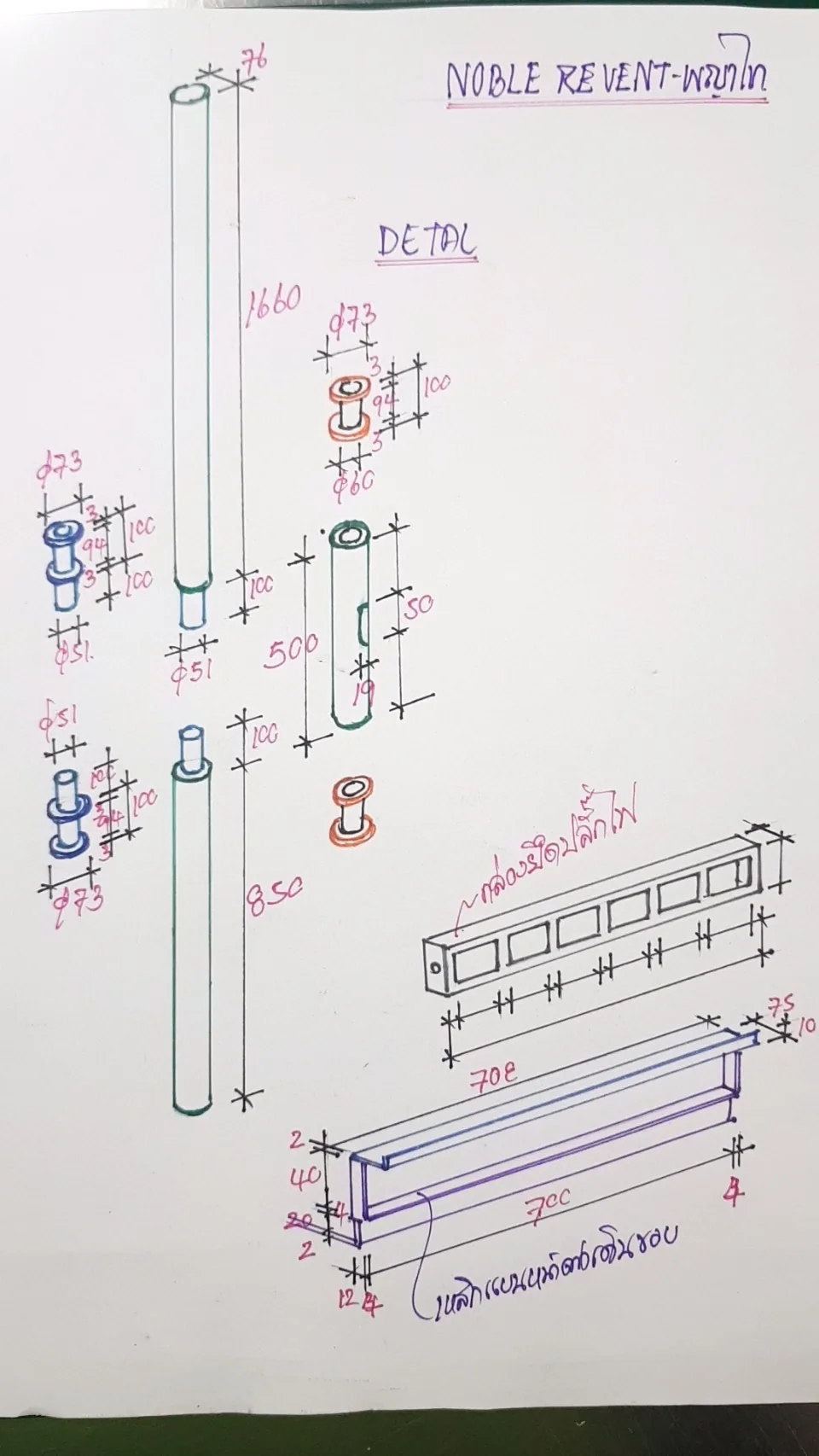

Hand sketch for Noble Revent rotating TV stand by SpaceLAB Architects
Hand SketchPivot + Pole Detail

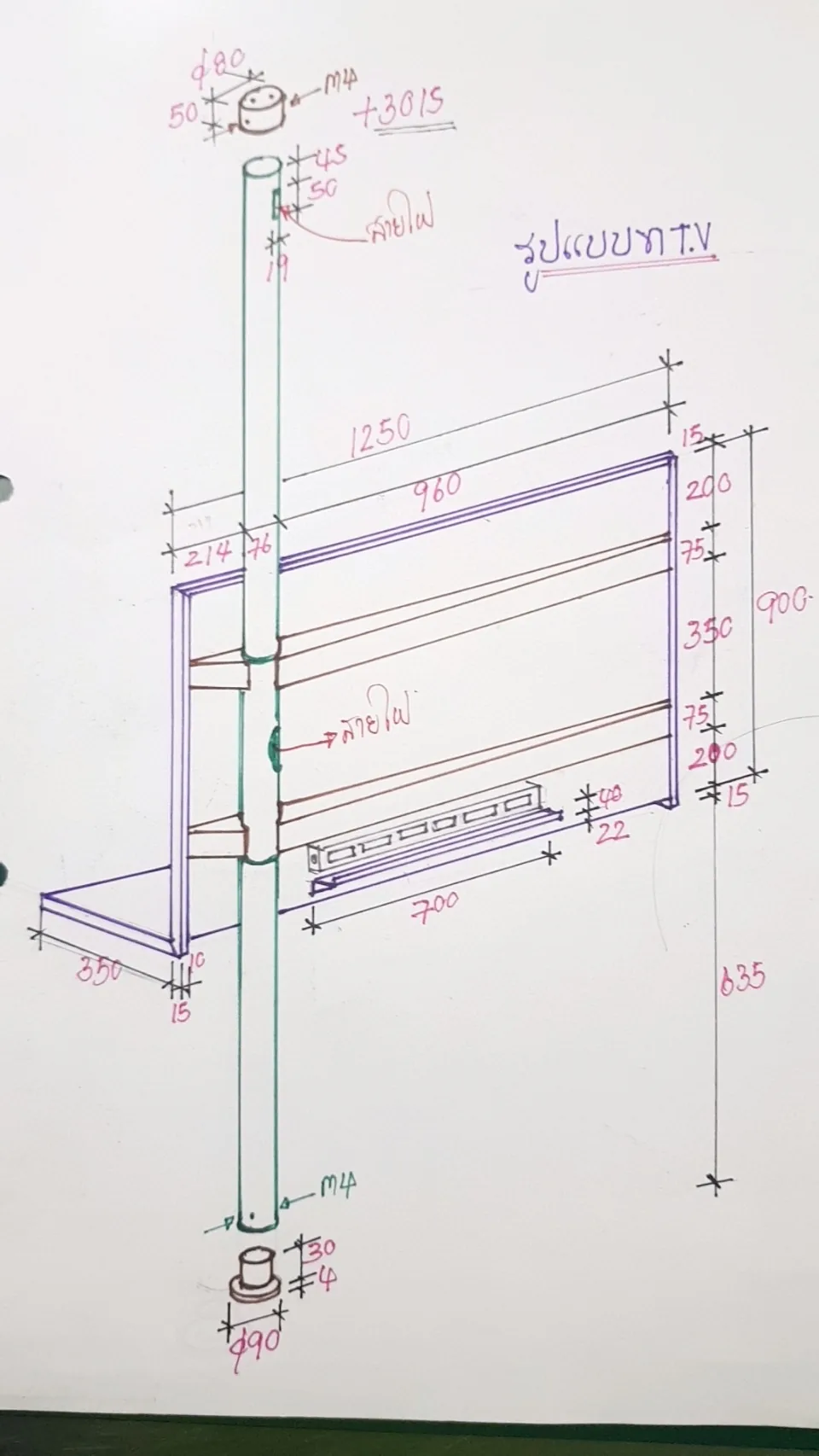

Detailed hand drawing of the rotating TV mechanism at Noble Revent
Development SketchTV Support Assembly

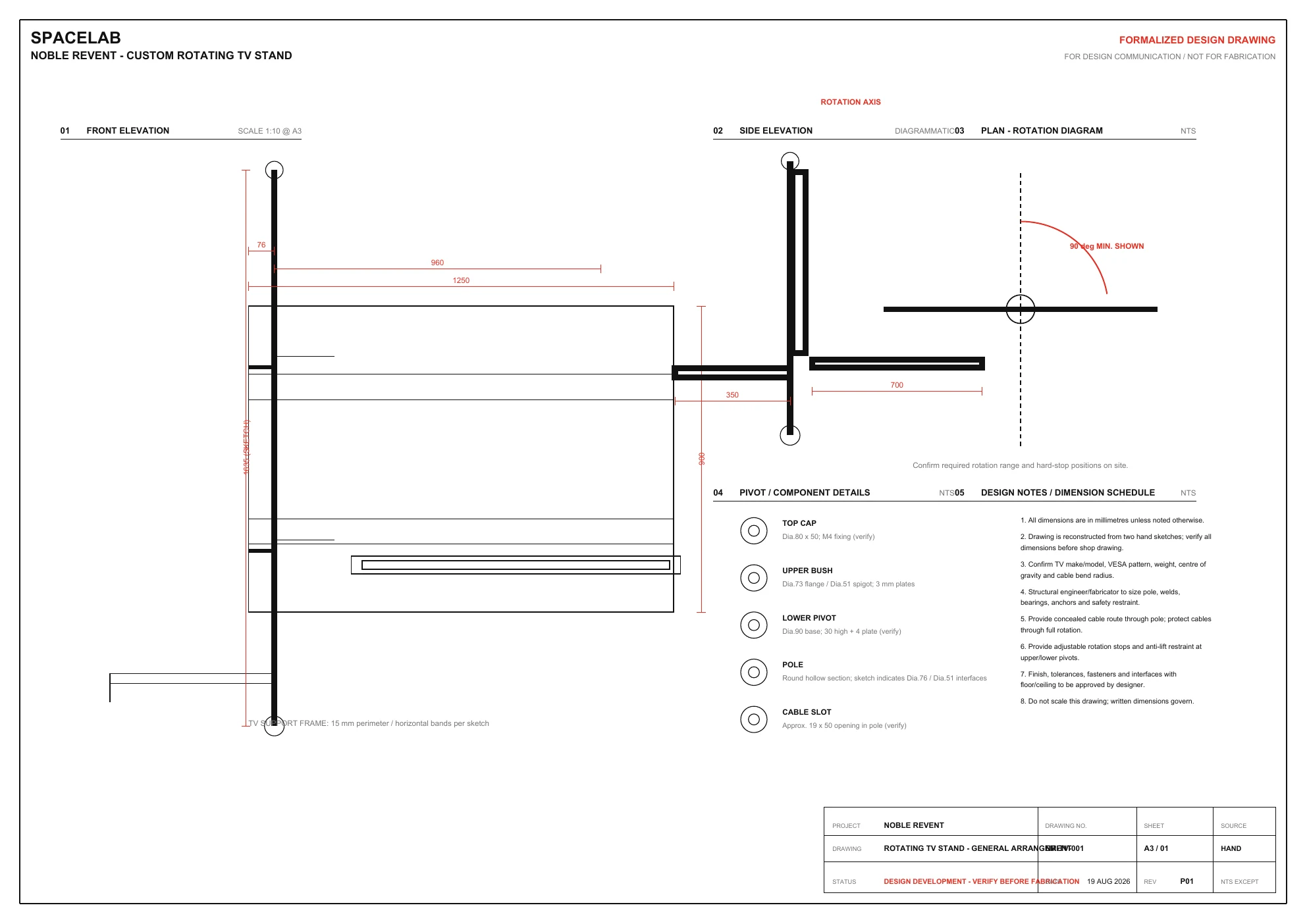

Formalized general arrangement drawing developed from the original Noble Revent rotating TV stand sketches
Formalized DrawingGeneral Arrangement / PDF

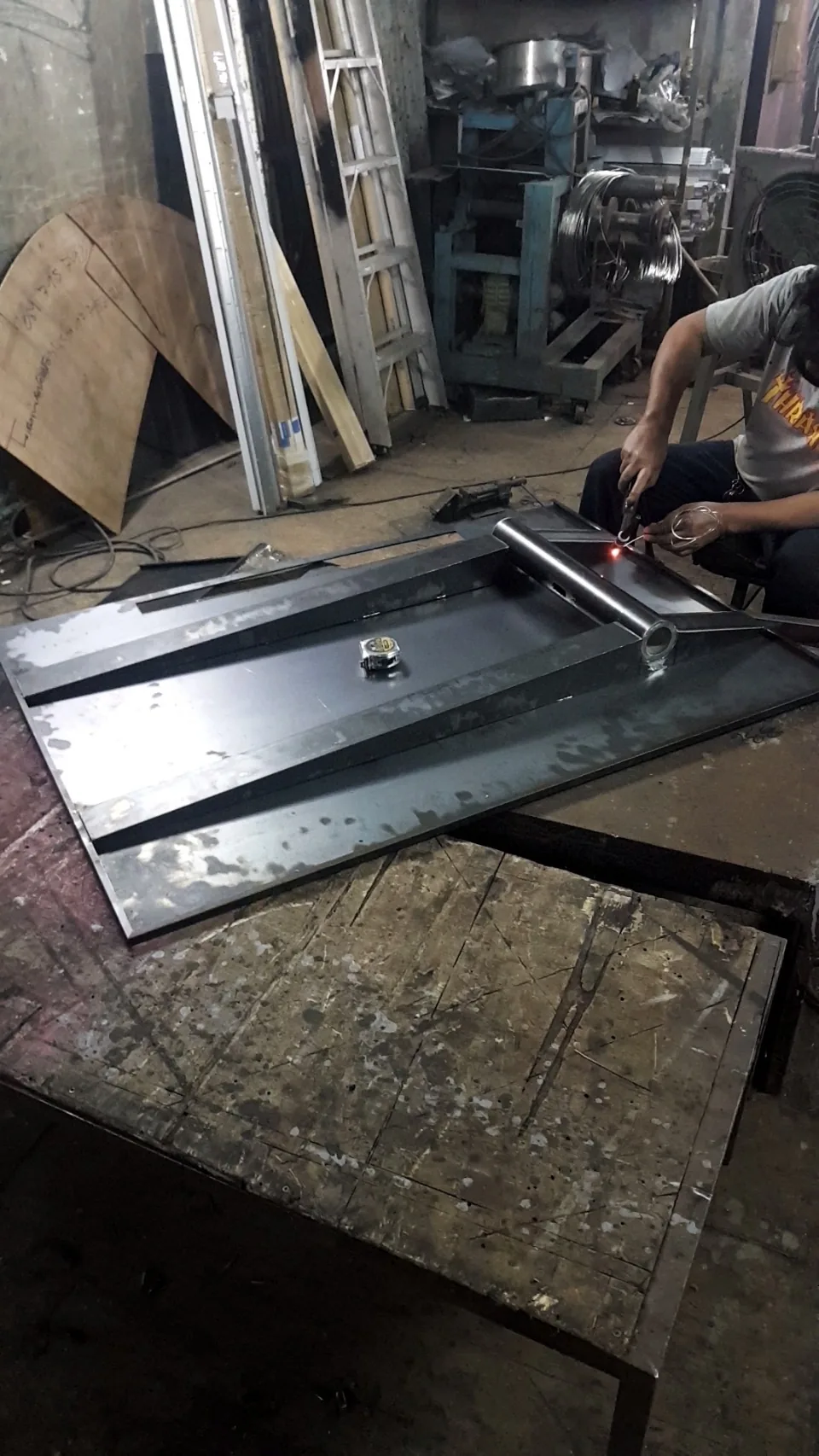

Rotating TV stand being fabricated in a local metal workshop
FabricationWorkshop / 01

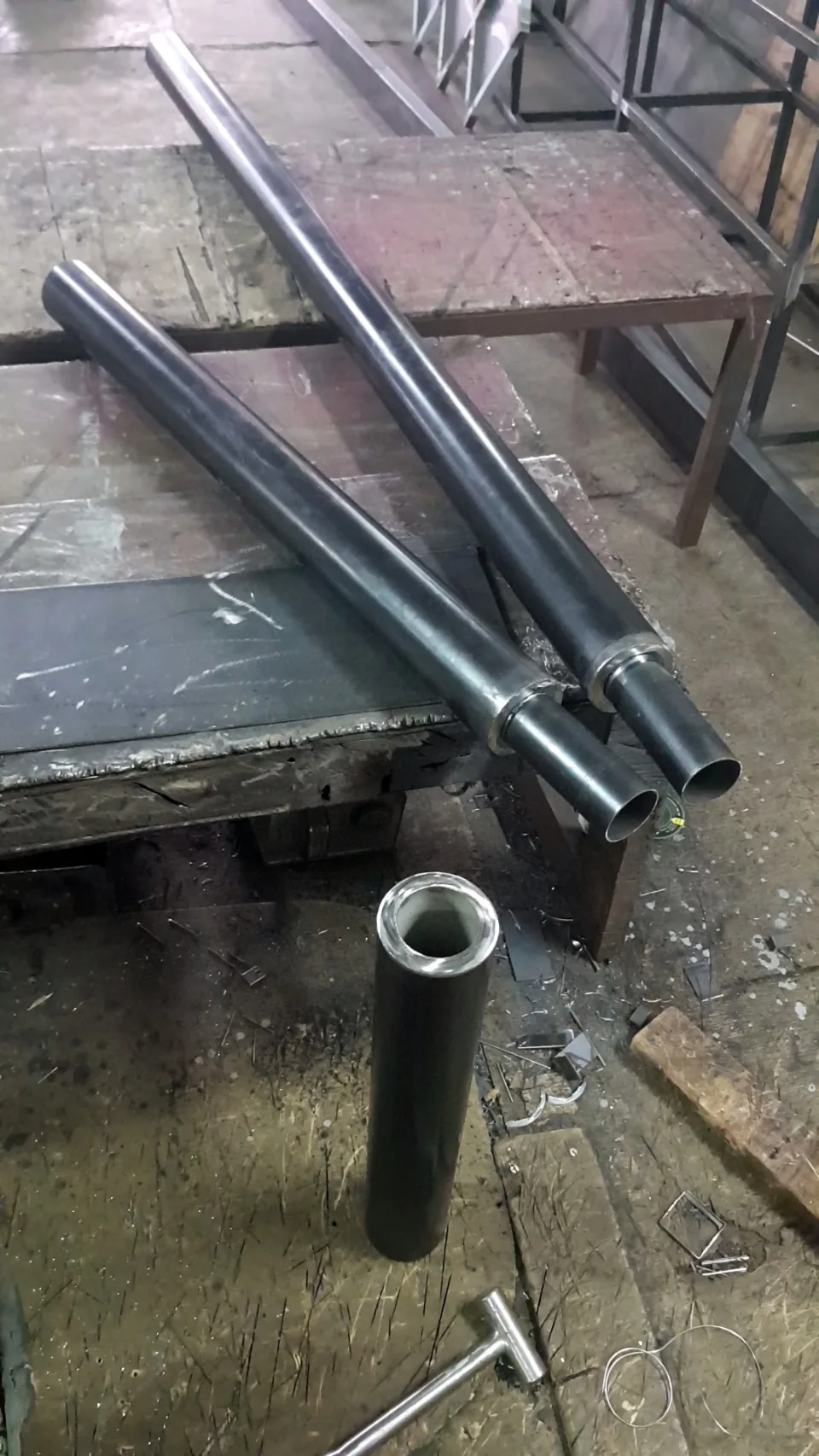

Steel pivot tubes fabricated for Noble Revent rotating TV system
FabricationWorkshop / 02
03 / PLAN

One plan, many viewing positions.

The floor plan helps explain how living, dining and circulation overlap in a compact footprint, and why the rotating TV element is useful rather than decorative.

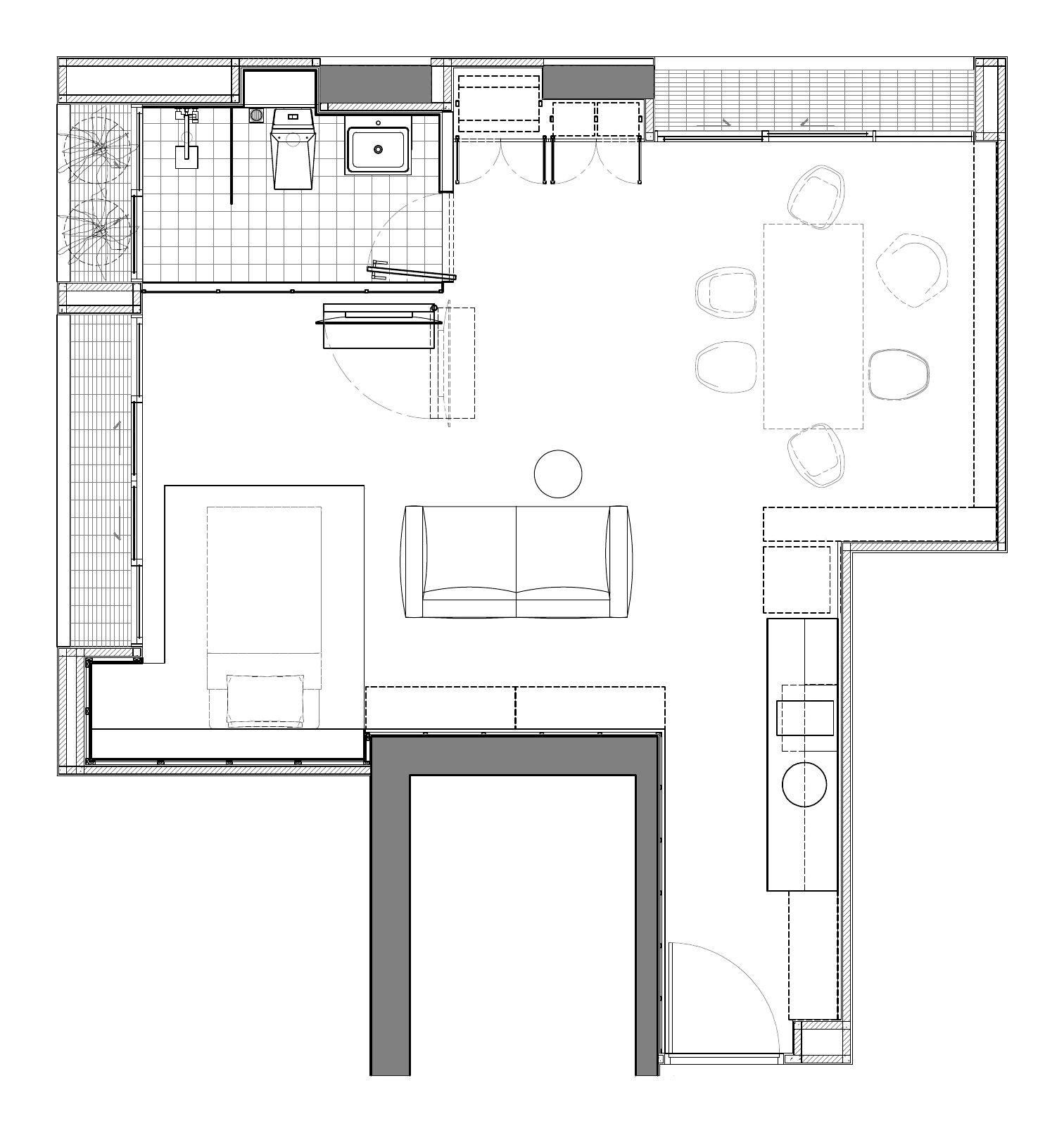

Noble Revent apartment layout plan showing the rotating TV stand between the living and dining areas
Architectural DrawingApartment Layout Plan
